Hazelwood

Efficient space utilization as the key highlight, with contemporary exteriors adding more value

3 Bedroom

3 Bathroom

1401+ sq. ft.

30 x 45 feet (9m x 13.7m)

Vasthu aligned for West

The design includes a floor area of 793 sq.ft of ground flooor space and 608 sq.ft on first floor. The residence includes optimized spaces with an open and flexible living cum dining space, giving it a sense of a large hall for family gatherings. The house comes with 3 standard size bedrooms and a decently large kitchen with secondary access from outside. The bedroom comes with dedicated storage cabinets. The upper floor include family living with large folding doors opening up to the terrace on the backside. It also has a bedroom with a large front facing balcony. The entrance door opens up to a prayer space, creating a blessed ambience.

Optimum Daylight

Design optimized to allow ample daylight into every room

Optimum Ventilation

Design optimized to allow proper ventilation in every room

High Effective Area

Multi-functional spaces to ensure more bang for your buck!

Utility Efficient

Utility index efficient design ensures more area for the spaces you love!

Fully Functional

Handed over with wardrobes, modular kitchen, electrical and sanitary fittings

Safety & Security

Premium door locks, wooden/steel door options, CCTV add-on

Elevation Option 1

Elevation Option 2

Elevation Option 3

Elevation Option 4

* Gallery images include available upgrades/add-ons for illustration purposes.

Building Performance

BuildNext Building Performance Indices ensure that your design gives you the most bang for your buck maximizing space utilization. Your building design will be highly energy efficient with natural lighting & ventilation thus reducing your carbon footprint.

Building Performance Index

This design excels at the Effective square feet rating, with its flexible space design combining living and dining space as a big hall instead of separate space with singular function. As an added advantage, the Utility factor is also considerably enhanced. Wall area ratio and Opening are ratios are tuned to optimum levels thereby balancing must haves like natural lighting & ventilation while also keeping the construction cost to minimal, as more opening area would increase the cost. The same reflects in good Daylight factor and Ventilation factor values - strategically placed windows allow for maximum daylight and improved ventilation inside.

This is an indicator which shows effective space utilisation within a building. It is the sum of the area used for different activities within a building.

Consider a 200 sq.ft space, if the space is only used as living room, the effective sq.ft remains as 200 sq.ft (effective sq.ft ratio = l) .Where as if the same 200sqft is shared for multiple activities like living, dining and kitchen then the effective sq.ft becomes 300 sq.ft (effective sq.ft ratio = 1.5).Shared activity spaces has a direct impact in the effective sq.ft of the building. You should look at increasing this if you are looking to reduce total costs without compromising on the functionalities.

If the value of the effective sq.ft ratio is > 1, then it means the spaces are effectively utilised and if the value is = 1 it show there is not much of value addition done effective utilisation of spaces.

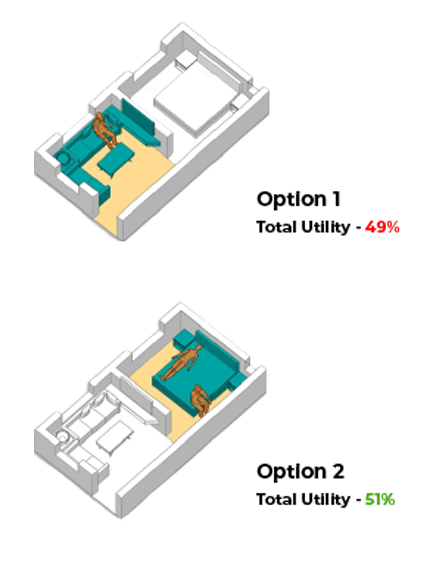

This indicator shows the utility of the building based on the average time spent by the occupant in each separate space within a day . This is a very effective tool to figure out how much spaces are you building that you don't use very regularly. The higher the utility factor, the smaller your budget for a given lifestyle.

This is the ratio of total wall area constructed in a building both internal and external to the total area of the building. This is an indicator which is used to determine enclosure within a building. The higher this ratio, the more space you lose in terms of walls. It also means higher cost per sft. As it can be guesses, open plans have less wall area ratios.

This is the ratio of total window opening area to the total area of the building. Openings drive costs up. But they also make the building more liveable and reduce maintenance costs. You should be closely looking at this while trying to maximise the ventilation and daylight factors for best results.

0 - 20%

Surely need lamps in daytime!

Very few naturally well lit spaces. Suggested to use only lighter colour interiors. Difficult to read and write in most spaces without artificial lighting almost all the time.

20 - 40%

Often needs lamps during day

Some important areas are naturally lit. Suggested to use lighter shades in walls & flooring. Sometimes find it difficult to read without artificial lights even in daytime.

40 - 60%

Moderate daylight, sometimes need lamps

A good share of area is naturally lit. Can try a highlighter wall or a medium darkness floor. Only sometimes need artificial light, like on cloudy days.

60 - 80%

Well lit,rarely need lamps

Almost all areas are naturally lit. Upto one dark shade surface won't make it too dark. Artificial lights usage rare during day. Have pleasant and readable spaces.

80 - 100%

Bright, almost never need lamps during daytime

Almost all spaces brightly lit naturally. Can use even dark coloured surfaces, which result in decrease in avg light. No artificial lights needed for normal activities. Might need glare cutting devices for reability.

This is an indicator which shows how well the building is naturally ventilated. A well ventilated house can have a higher impact in cost saving during the life time of the building.

Elevation Options

Wall & Floor Finishing

Sanitary Fittings

Kitchen Cabinets

Wardrobes

Doors & Windows

Staircase Options

Compound Wall

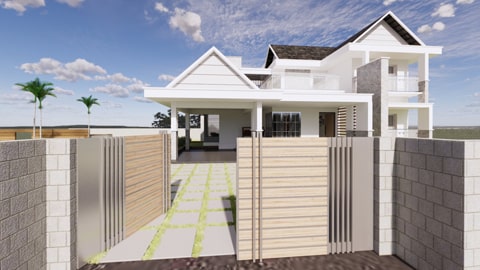

Entrance Gate

Solar Power Supply

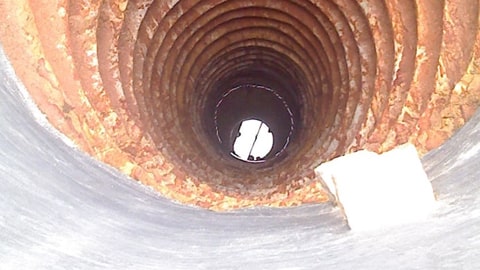

Well/Bore Well

Rain Water Harvesting

Foundation

Reinforced concrete foundation as per the structural drawing

Structure

Column-Beam Framed RCC Structure as per the structural drawing

Masonry

Solid Concrete brick masonry of 8", 6" & 4"

Plastering & Waterproofing

Cement:sand plaster walls on external walls, internal walls & ceiling - cement:sand plastered smooth finish with a waterproofing admixture on terrace floor, waterproofing on toilet floors and walls upto 2 ft height

Electrical

Concealed conduiting, wiring, electrical fittings & fixtures with modular switches & cover plates including earthing & all safety protection devices

Electrical Provisions

Air conditioner provision in bed rooms, geyser provision in toilets

Plumbing

Plumbing works using ISI Certified uPVC & CPVC Pipes including septic tank, soak pits (2 nos), overhead water tank, sump tank and water pump

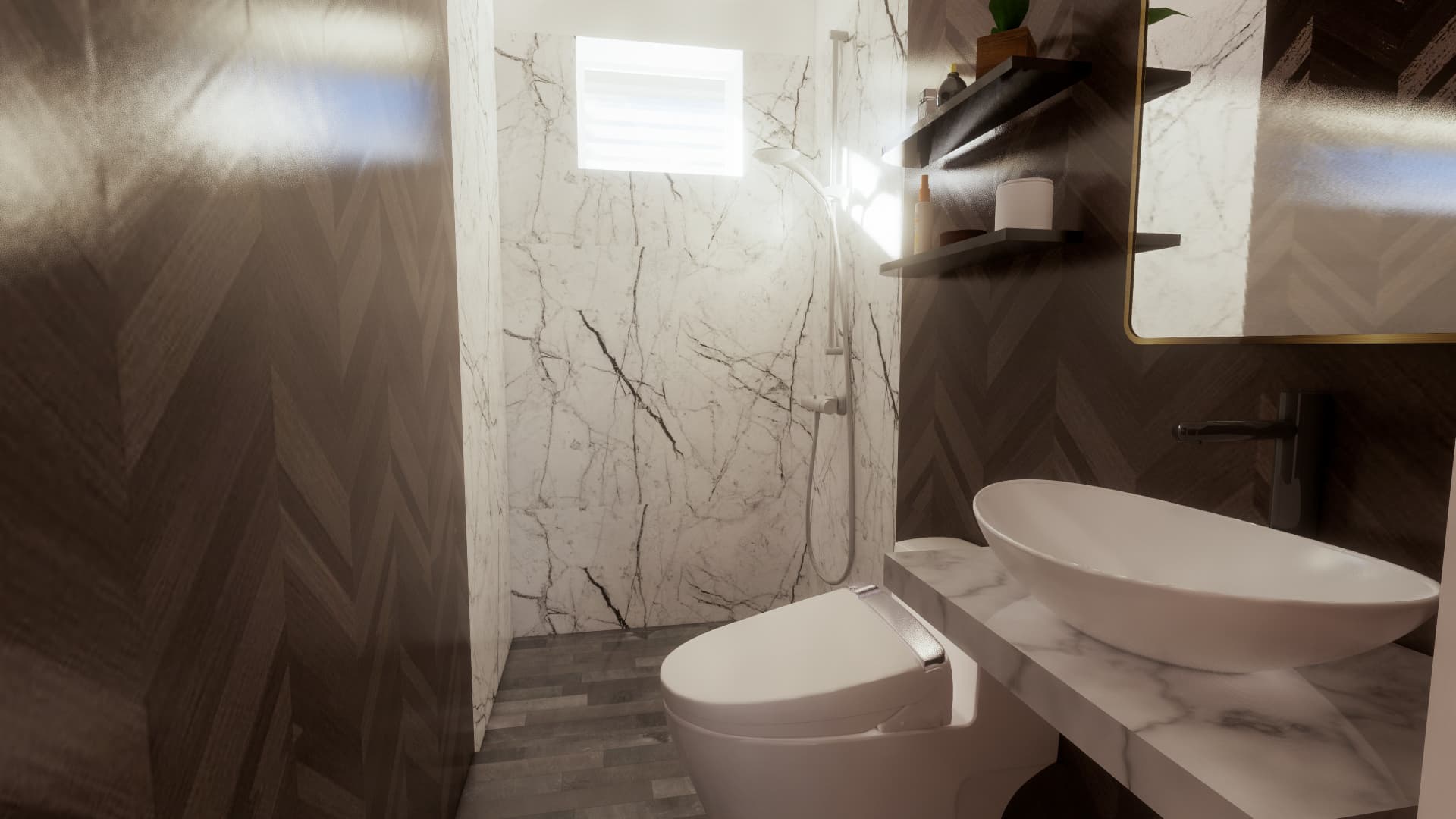

Sanitary

Floor mounted two piece water closet, wall hung wash basin without pedestal, overhead shower with tap, towel rod, mirror & soap dish in all toilets

Kitchen and Dining

Concrete kitchen slab with polished granite counter top, stainless steel single bowl sink with drain board, wall hung wash basin, towel rods & mirror in dining area

Doors

Teak wood main door, external wooden doors, uPVC internal casement door, toilet WPC door

Windows

uPVC white profile 2 track sliding windows with grill work using 12 mm square/round bars

Wall Finishes

One coat primer & 2 coat emulsion on exterior walls, interior walls and ceiling surfaces

Flooring

Flooring using vitrified tiles of size upto 2 ft x 2 ft laid using cement:sand mortar with joint filler upto 3mm depth, ceramic/equivalent toilet floor tiles with joint filler, ceramic/equivalent toilet wall tiles with joint filler upto 7 feet height

Elevation

MS handrails in staircase, texture paint in elevation, concrete interlocking paver blocks in car porch

Cabinets

Kitchen cabinets made of Fero cement boxes and aluminium composite panel doors of 3mm panel with 0.21 mm coil thickness in alumnium channel frame work with all necessary hardware including handles, hinges etc.

Wardrobes

Wardrobe in all bed rooms - readymade carcass with 18mm wooden finish pre-laminated particle board and 18 mm wooden finish pre-laminated particle board shutters with all necessary hardware including handles, hinges etc.
